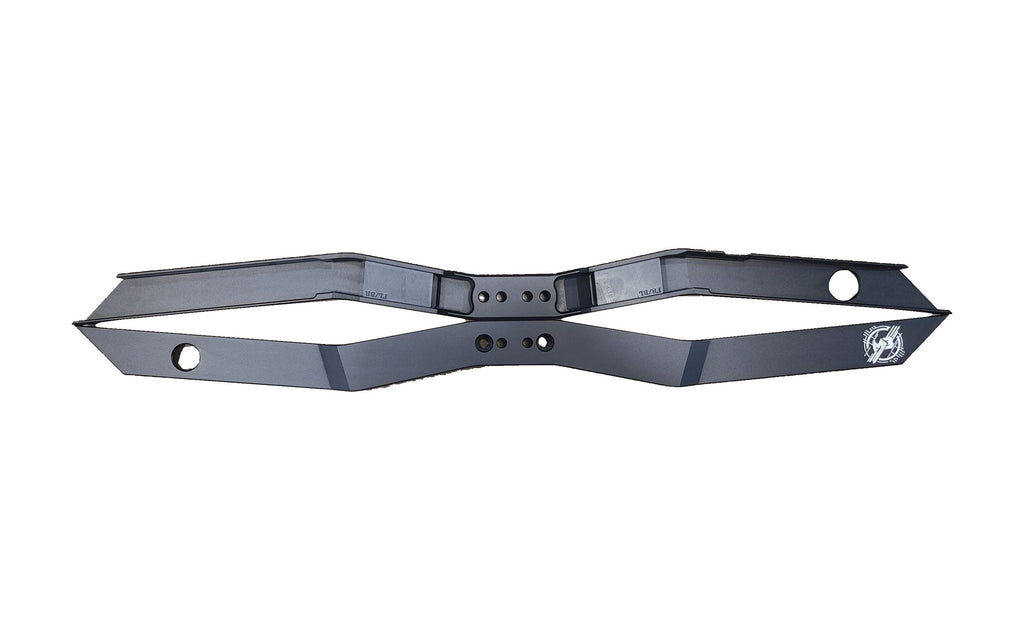

MB 12x8 XR Rails
$450.00
These rails aren't in the current production batch. Orders join the next batch, with a 6 to 8 week lead time once it starts.
- Fits all known XR components: battery and controller housings, axle blocks and bang bumpers.
- 730 mm length of 7075 aluminum.
- Symmetrical 5 degree nose and tail.
- Tire width cuts and 4-hole printed, threaded harness retainers for the 12x8 tire options.
- VOW sym box compatible: the sym boxes drop right in, no cutting or grinding.
- Double rear torque bang compatible. With VOW sym boxes you run 2 rear torque bumpers; an extra threaded hole up front lets you mount a rear bumper up front.
- Bead blasted and anodized with a laser-etched MB logo on the left rear.
Lead time: 6 to 8 weeks. Rails are made in batches (about 5 weeks machining, 1 week anodizing).
Maxxis 12x8 tire: may require Wiska Clixx low profile silicone cable glands, depending on your controller and battery box setup.
Not dual torque box compatible without modification.
These rails are long: a harness extension or replacement may be required. Various vendors offer pre-made extended harnesses.
Some threads may need chasing with a 10-32 tap due to anodizing or minor machining burrs. Usually the screw does this on first install; if resistance seems excessive, a quick pass with a 10-32 taper tap clears it.
