MB XR Battery Enclosure

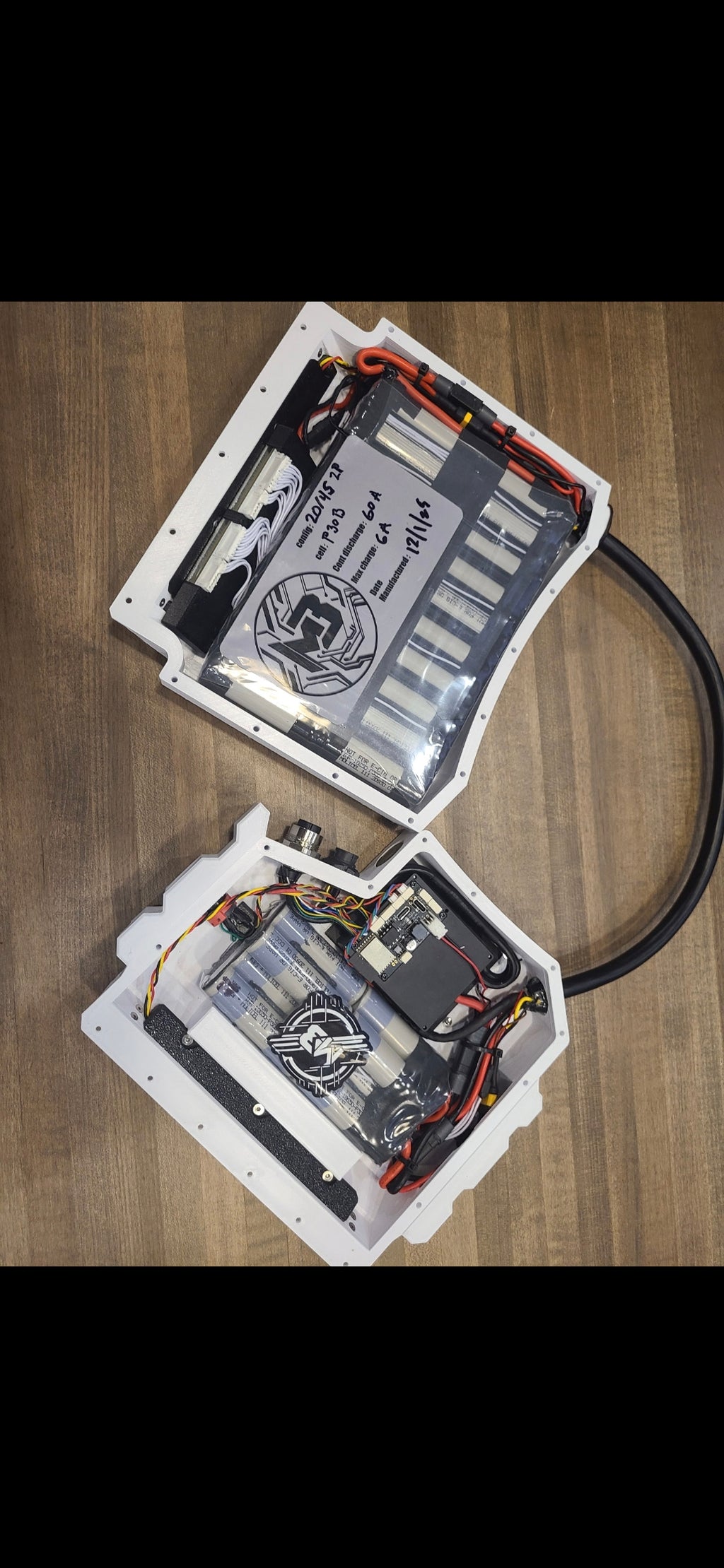

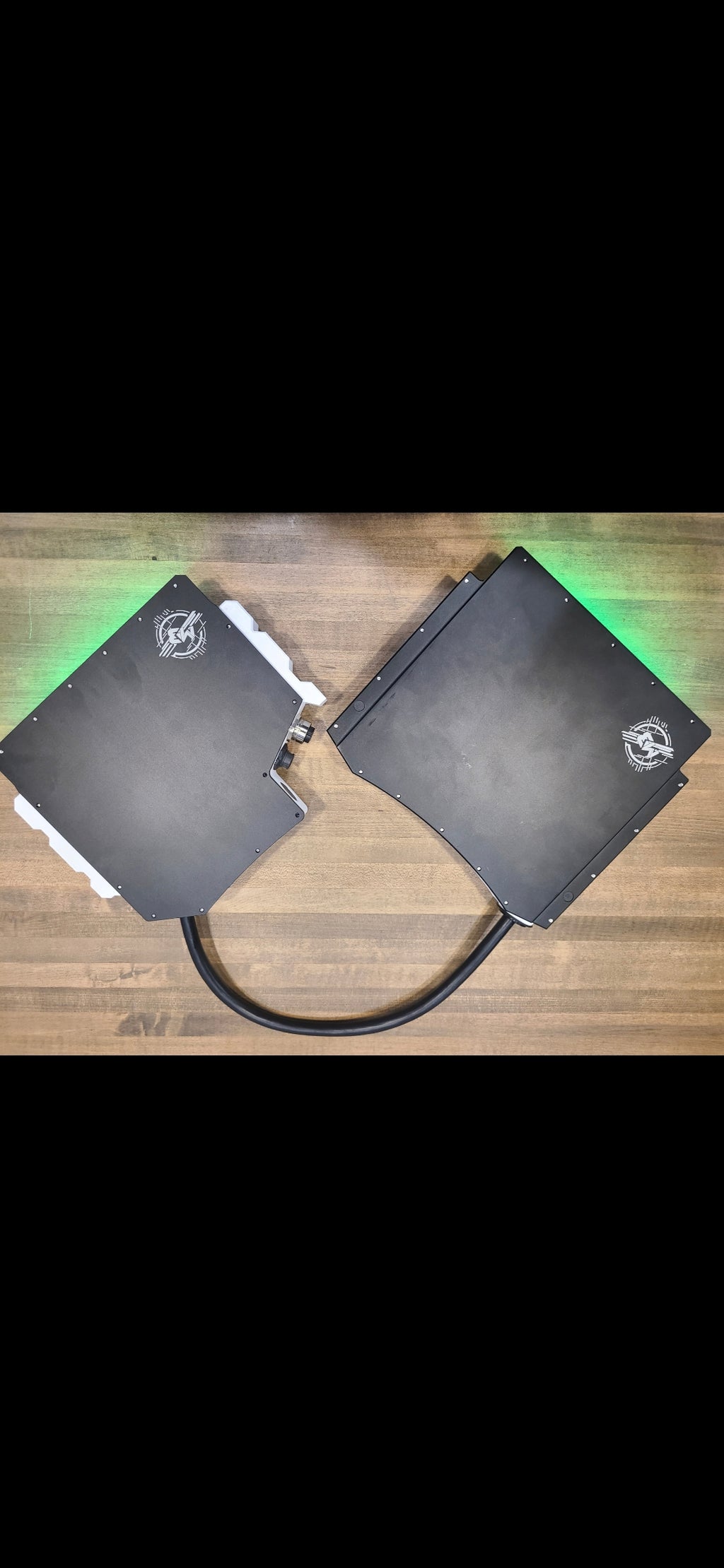

• 3D printed battery enclosure for the XR.
• Two sizes: large torque box sized for 21700 battery builds, small for 18650 builds.

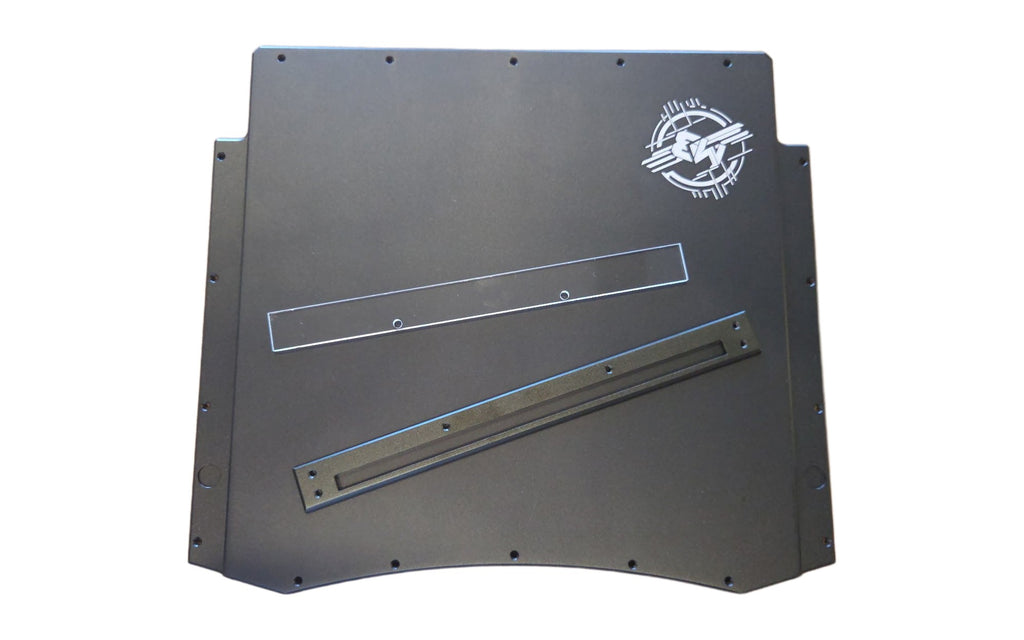

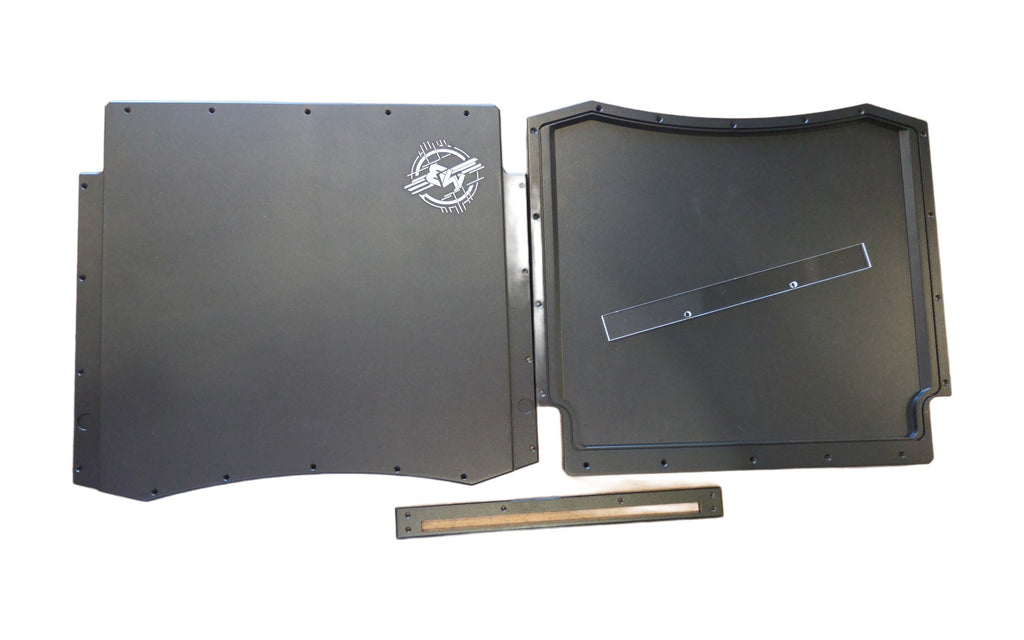

• 3 mm 7075 lid, anodized, laser etched, threaded, with machined gasket groove. No heat set inserts for the lid.
• 7075 thread plates for the rail-to-box connection, no heat set inserts to spin or pull out.
• 7075 threaded LED protection plate and 3 mm Lexan window.
• Removable LED mount for simple, serviceable PCB and LED tape lights (not H4 compatible).
• Dual gland compatible, designed for M20 glands.
• Gland hole plug and nut included in the files and the full kit.

Full kit: all printed and machined parts plus hardware. Machined parts + hardware: the machined aluminum parts and hardware only. Hardware pack: just the screws and hardware needed to complete the box.

All files for this box are free to download, print and machine for personal use on Printables.
