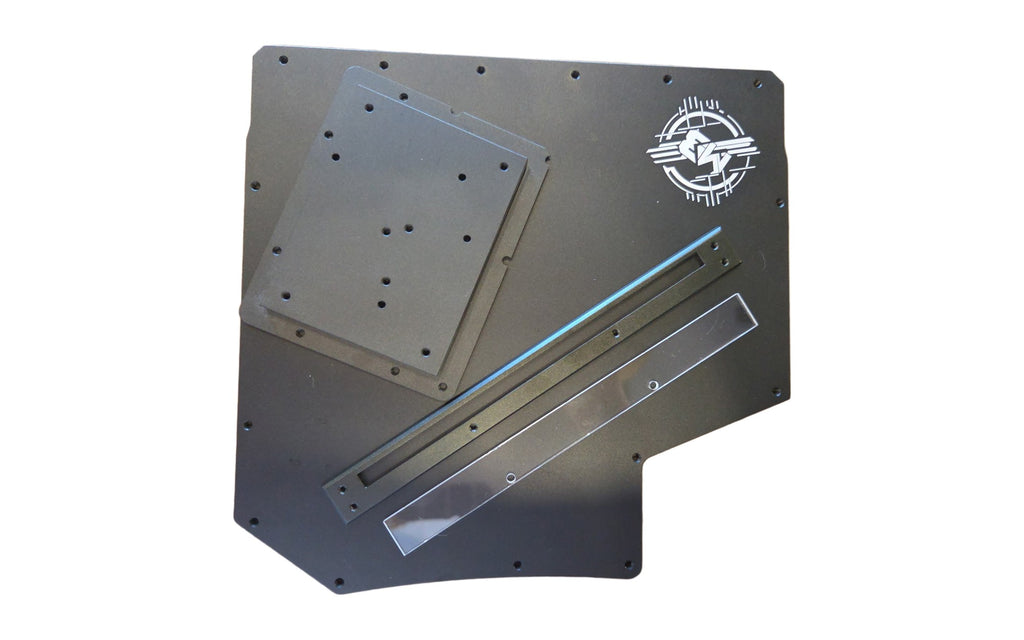

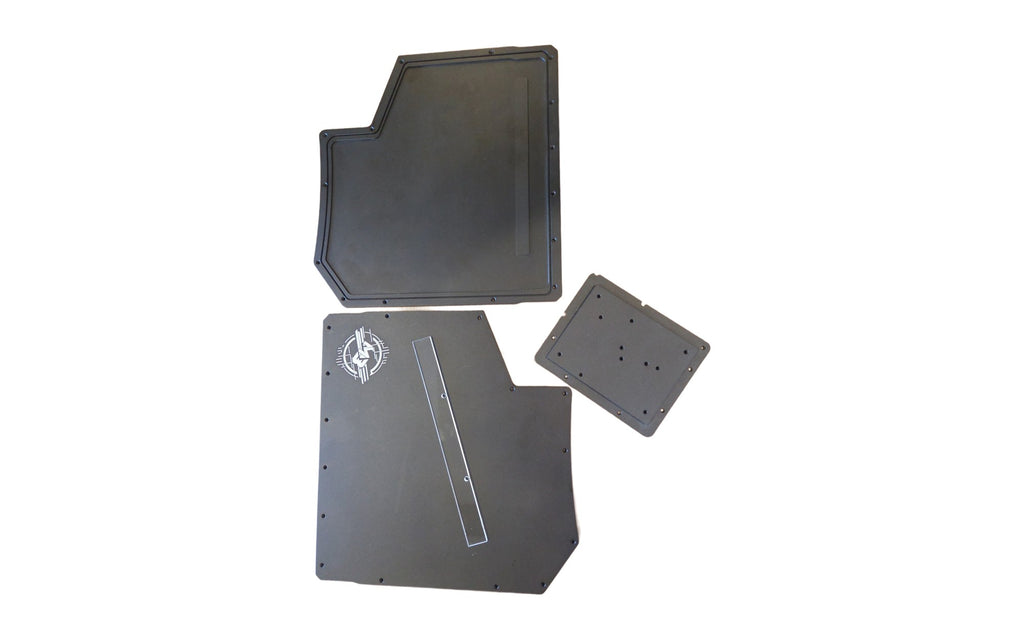

MB XR Controller Enclosure

• 3D print and CNC hybrid controller enclosure for the XR.
• 7 mm anodized 6061 bottom-mounted heat sink, no lid mounting.
• Heat sink currently fits Thor 3 and 4, Jetfleet F6 and Ennoid MK8. Controller mounting hardware not included.
• 3 mm 7075 lid, anodized, laser etched, threaded, with machined gasket groove. No heat set inserts for the lid.
• 7075 threaded LED protection plate and 3 mm Lexan window.
• Supports both SF and GT motor plugs.
• Supports the standard XR Switchcraft footpad plug.
• M20 gland for the main harness.

Full kit: all printed and machined parts plus hardware. Machined parts + hardware: the machined aluminum parts and hardware only. Hardware pack: just the screws and hardware needed to complete the box.

Requires a battery box with 2 gland holes. Motor and footpad plugs are on the right.

Using this heat sink with the Thor 400 is the responsibility of the end user. The heat sink is standard anodized, and I cannot yet confirm that is enough to prevent shorting with that controller. Consult Fungi support if further safety steps are required.

All files for this box are free to download, print and machine for personal use on Printables.
